Do probiotic capsules need a high-barrier package, or can a standard HDPE bottle hold label claim through a 24-month shelf life?
A well-sealed HDPE bottle with a correctly sized desiccant can hold label claim for many products in temperate distribution. Humid export routes, hygroscopic blends, and fragile strains usually justify cold-form foil blisters or desiccant-integrated closures. Choose on total cost per unit, meaning packaging plus the CFU overage each format requires, not on bottle price alone.
The answer shifts toward higher barrier in Climate Zone IVb markets (30°C / 75% RH), and clear PET is hard to justify for live cultures. A higher-barrier format adds packaging cost and can change line equipment, pack size, and dosing habits, so it pays off only if it lets you cut the overage or avoid late-shelf-life potency failures. To verify, request USP <671> moisture data at 40°C / 75% RH on the complete assembly, then confirm with CFU stability testing of your own formulation in that package.
Where Moisture Actually Costs You Money
Freeze-dried probiotics survive storage because too little water is available to drive the physical and chemical changes that damage cells. As water activity (aw) inside the package rises, die-off accelerates. How fast, and at what water activity it becomes a problem, depends on the strain, the cryoprotectants, and the excipients. Your working limit should come from your culture supplier’s stability data or your own, not from a generic industry figure.
Most brands protect label claim with an overage: they put more CFUs into the product at manufacture than the label states, so that enough survive to the end of shelf life. The overage covers several kinds of loss, including processing, encapsulation, and storage. Packaging influences only the storage portion. For a product with a 24-month claim sold into warm markets, however, storage loss can be the largest variable, and it is the one the packaging decision controls.

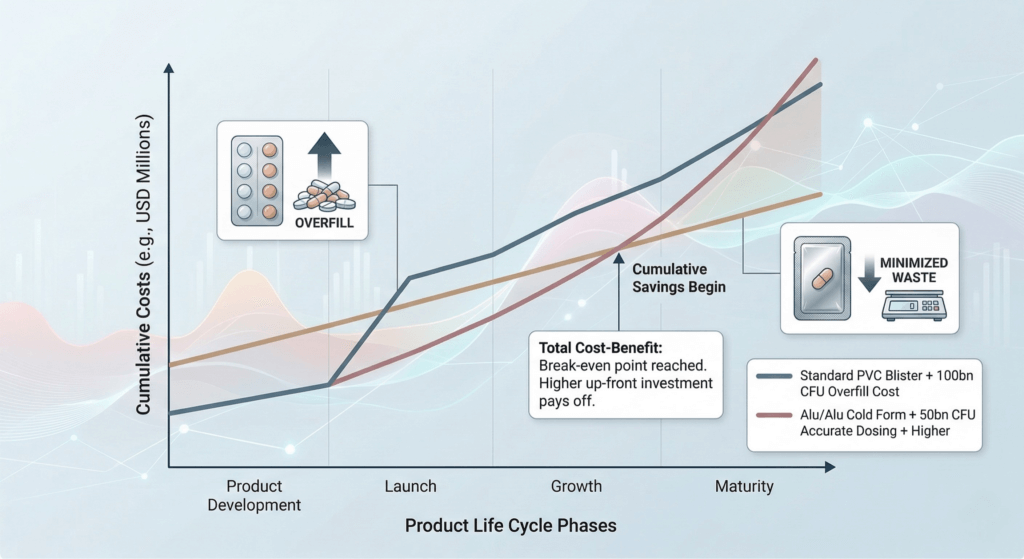

That turns packaging selection into a cost comparison. A lower-cost bottle that lets in more moisture gets paid for somewhere else: in a larger overage, a bigger desiccant, a shorter shelf-life claim, or a higher risk of failing potency testing late in the product’s life. Whether a better barrier costs less than extra culture depends on your price per billion CFU, your volume, and how much the upgraded package actually reduces loss. You can model those numbers, but you shouldn’t assume them. For how barrier fits into the wider format and compliance decision, see our supplement packaging guide.
What MVTR Tells You, and What It Doesn’t
Moisture vapor transmission rate (MVTR, also written WVTR) is the mass of water vapor that passes through a material or a package over a set period under stated temperature and humidity. Lower is better. Before comparing two MVTR figures, check three things.
Test conditions. MVTR rises with temperature and humidity. Film data is commonly reported at 38°C / 90% RH, and USP <671> container testing uses 40°C / 75% RH. Figures measured under different conditions are not comparable.
Thickness and units. Film data is often normalized to thickness, for example per mil, and reported in either g/m²/day or g/100 in²/day. The two units differ by a factor of about 15, and mixing them up is one of the most common sources of misleading datasheet comparisons.
Material or package. A flat-film value says nothing about the closure, the liner, or the seal.
The last point matters most for bottles. ASTM F1249 measures water vapor transmission through plastic film and sheeting, which makes it useful for comparing blister or laminate materials. For finished packages, USP <671> provides a gravimetric method, based on ASTM D7709, that measures moisture gain across the whole packaging system. For blisters, USP <671> reports results per cavity per day and defines barrier classes at 40°C / 75% RH: high-barrier below 1.0 mg/cavity-day and ultra-high barrier below 0.01 mg/cavity-day.
When a supplier quotes a barrier value, ask which test method was used, under what conditions, and on what sample: film of a stated thickness, or the complete sealed package.
Comparing Primary Packaging Formats
| Format | Barrier (whole package) | Where moisture gets in | Main trade-offs | Typical fit |
| Glass bottle | Wall is effectively impermeable; the closure sets overall performance | Cap, liner, and seal; wider neck finishes admit more | Heavy, breakable, higher freight cost | Premium positioning with a well-engineered closure |
| Cold-form foil (Alu-Alu) blister | Can reach the ultra-high barrier class when forming and sealing are controlled | Seal defects; pinholes or cracks from forming | Higher material and tooling cost, larger pack per dose; each dose stays sealed until use | Humid markets, sensitive strains, travel packs |
| HDPE bottle with induction seal | Good; the usual starting point for solid-dose supplements | Wall permeation, the closure, and every opening after the seal is removed | Low cost and widely available; performance depends on wall thickness and seal quality | Temperate distribution, paired with desiccant |
| PP bottle or tube | Moderate to good | Wall and closure | Often used for closures and desiccant-lined tubes; may need thicker walls as a bottle | Small counts, desiccant-integrated formats |
| PET bottle | Lower moisture barrier than HDPE | Wall and closure | Clear, with strong shelf appeal; usually needs more desiccant or a larger overage | Rarely a first choice for moisture-sensitive live cultures |
For a sense of scale, published data for 1-mil (25 µm) HDPE film at 38°C / 90% RH falls roughly between 4.7 and 7.8 g/m²/day. A bottle wall is many times thicker, and the closure adds its own leak path. For both reasons, container-level data is the only reliable basis for a shelf-life projection.
One difference often gets left out of the comparison: a bottle’s barrier ends the day the consumer removes the induction seal. For a 60-count bottle taken over two months in a humid kitchen, in-use exposure can matter as much as the unopened shelf life. Blisters avoid this because each dose stays sealed until it is taken.
Sizing the Desiccant
Water reaches the product from two sources. The first is moisture already present at filling, in the capsule shells, the excipients, and the headspace air. The second is moisture that permeates in over the shelf life, plus whatever enters each time the bottle is opened. The desiccant has to absorb both, with margin, while holding the internal humidity at the low level your formulation needs.
Desiccant type matters at the dry end. Molecular sieve retains much more of its capacity at low relative humidity than silica gel does, so it is usually the better choice when the target is very dry. The trade-off is that aggressive drying can pull moisture out of gelatin capsule shells and make them brittle. HPMC shells generally tolerate drier conditions, but confirm this with your capsule supplier.
A larger desiccant does not fix a high-permeation package. It only delays the point at which the desiccant saturates, after which incoming moisture goes straight to the product.
Three Mistakes That Inflate Cost
Qualifying the bottle wall instead of the system. A low-MVTR HDPE bottle can still fail if the thread design, liner, or induction seal is poorly matched or inconsistently applied.
Choosing on appearance without costing the overage. Clear PET may sell the capsule color, but the extra desiccant and overage it requires belong in the same cost comparison as the bottle price.
Copying a competitor’s package. You can see their bottle, but you can’t see their overage, their stability data, or their returns. A familiar format is not evidence that it is the efficient one.
A Decision Sequence for Brand and Sourcing Teams
- Set the moisture limit. Get the acceptable water activity or moisture range for your strain blend from stability data, and confirm the capsule type, since it affects how dry you can go.
- Define the conditions the product will actually see. This means target markets, transit and storage climate zones, and in-use duration: count per bottle and days to finish it.
- Shortlist two or three formats and request container-level data. Ask for USP <671> results on the complete assembly, including closure, liner, seal, and desiccant, not film datasheets. If a product is already on the market, start by reviewing whether your current package should be kept, modified, or replaced.
- Model total cost per unit. Include packaging, desiccant, the overage each format requires, and any line changes. Your QA team should set the potency margin at end of shelf life. The preferred option is the lowest-cost format that meets it.
- Confirm with stability testing. If the chosen package holds potency with margin, you have grounds to reduce the overage in controlled steps. If it doesn’t, upgrade the barrier or desiccant before adding more culture.
Buyer FAQs
Can PET bottles work for probiotics if we increase the desiccant?
Is accelerated testing at 40°C / 75% RH enough to set a probiotic shelf life?
References
- World Health Organization. Stability testing of active pharmaceutical ingredients and finished pharmaceutical products. WHO Technical Report Series No. 953, Annex 2, 2009.
- ASTM F1249. Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor. ASTM International.
- ASTM D7709. Standard Test Methods for Measuring Water Vapor Transmission Rate (WVTR) of Pharmaceutical Bottles and Blisters. ASTM International.
- United States Pharmacopeia. General Chapter <671> Containers—Performance Testing. USP–NF.
Standards references checked November 2026.
